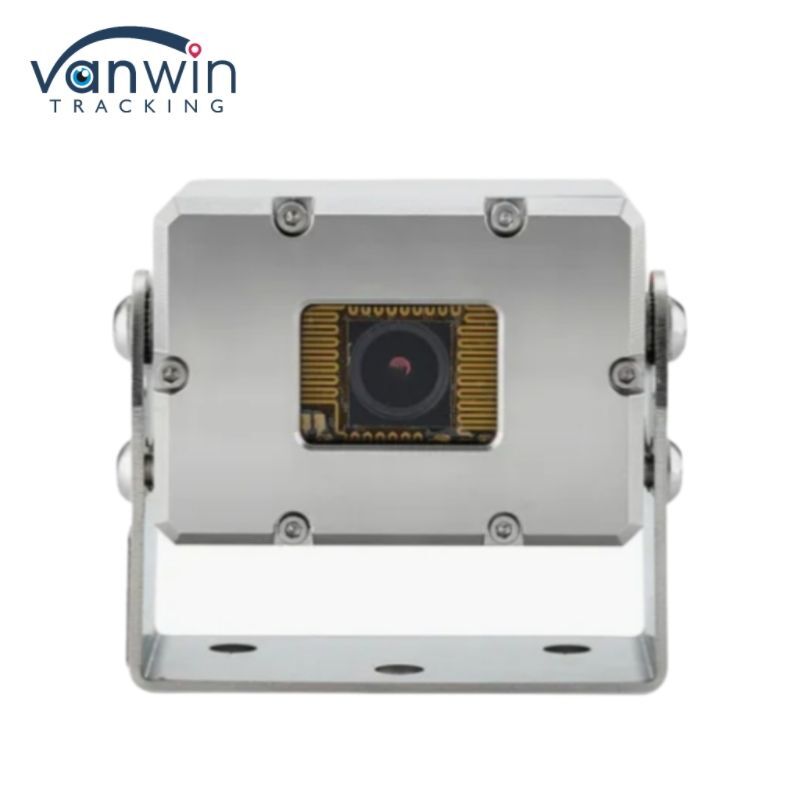

Explosion-proof Underground Mine Camera IP68 Mine Monitoring System
Dettagli:
| Luogo di origine: | Shenzen, Cina |
| Marca: | Vanwin Tracking |
| Certificazione: | CE/FCC/RoHS |
| Numero di modello: | VW-E60 |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 PZ |
|---|---|
| Prezzo: | negotiated |
| Imballaggi particolari: | Pacchetto di scatole di cartone neutro per impostazione predefinita. Il pacchetto personalizzato è d |
| Tempi di consegna: | 2-3 giorni per campioni, 15-30 giorni per grandi ordini |
| Termini di pagamento: | T/T o Western Union o PayPal |
| Capacità di alimentazione: | 50.000pc al mese; |
|
Informazioni dettagliate |
|||
| Sensore: | 1/3 CMOS | Grado impermeabile: | IP68 |
|---|---|---|---|
| Materiale: | Acciaio inossidabile 304 | Supporto: | Riscaldamento automatico |
| Protezione: | Resistente all'alta pressione | Distanza effettiva: | 30m |
| Caratteristica: | Impermeabile, a prova di esplosione e anticorrosione | Telecomando: | Senza telecomando |
| Nome del prodotto: | Fotocamera della miniera sotterranea | ||
Descrizione di prodotto
Explosion-proof Underground Mine Camera IP68 Mine Monitoring System
Feature of Underground Mine Camera:
Waterproof IP69 Industrial Explosion Proof Anti-corrision Camera for Hazardous Environments.
Used for industrial stainless steel explosion-proof cameras such as oil tanker trucks, offshore vessels, gas stations, chemical plants, etc
①The explosion-proof camera is a specialized video surveillance device designed to operate safely in hazardous environments where flammable gases, vapors, dust, or fibers may be present.
②Its primary purpose is not necessarily to withstand an explosion from the outside, but to prevent it from igniting the surrounding atmosphere.
③They achieve this by being housed in a robust, sealed enclosure that can contain any spark, electrical fault, or high temperature generated inside the camera itself, preventing it from reaching the volatile external environment.
Parameter of Underground Mine Camera:
| Product Name | Industrial Explosion proof Camera |
| Effective pixels | 1920 (H) * 1080 (V) |
| Imaging Device | 1/2.9 2053 720P/1080P AHD |
| Clarity | 1200TVL (B/W1300TVL) |
| Video output | 1920 * 1080 line by line AHD-BNC |
| Gamma coefficient | 0.45 |
| AGC | Auto |
| Lens | 2.8mm F=1.2 |
| Camera angle | 90 ° |
| Waterproof rating | IP69 |
| Weight | 1kg |
| Voltage | DC 12V ± 10% |
| Working temperature | -20 ° C~85 ° C, RH95% MAX |
| Storage temperature | -30 ° C~90 ° C, RH95% MAX |
| Current | 310mA ± 10% (infrared start), 60mA ± 10% (infrared non start) |
Our Industry Advantage of Underground Mine Camera:
We specialize in the research, development, production, and sales of advanced vehicle CCTV systems, ensuring our customers have access to the latest technology. Committed to stringent quality control, our professional QC teams consistently deliver high-standard products. We have had the privilege of serving major companies worldwide and customizing specialized projects for clients across the globe. Look forward to the opportunity to collaborate with you in the near future.
FAQ
1.Q: How do I install this car camera on my truck?
A: We have detailed product installation and operation instructions to help you install and use this waterproof anti-corrosion car camera better and faster.
2.Q: Is this car camera really anti-corrosion?
A: Yes, this product is our specially developed waterproof, explosion-proof and anti-corrosion car camera, which can adapt to various extreme working environments.
3.Q: Is this camera suitable for use on LNG carriers?
A: Yes, this product is suitable for use in various industrial machinery.
4.Q: Does your company support custom service?
A: Yes, we have provided many clients with customized solutions to solve their specific needs, with a customer satisfaction rate of 99%. If you have a customized request for the vehicle monitoring system, please send it to us by email.
