4Pin Waterproof Trailer Cable 12V Electronic Wire Camera for Double Truck Bus Tractor Rear View Cameras
Dettagli:
| Place of Origin: | China |
| Marca: | Vanwin |
| Certificazione: | CE/FCC/RoHS |
| Model Number: | VW-SC001 |
Termini di pagamento e spedizione:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Prezzo: | Negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for bulk orders |
| Payment Terms: | T/T, Western Union, PayPal |
| Supply Ability: | 50,000pcs per month |
|
Informazioni dettagliate |
|||
| Function: | Connector / Adapter / extension cable | Detect Range: | 0.3~3.5M |
|---|---|---|---|
| Jacket Material: | PU, TPU | Different Length: | 0.5m/1m/2m/3m/5m, can be customized |
| Application: | Mobile DVR/ NVR | Environmental Temperature: | - 20°C ~ + 70°C |
Descrizione di prodotto
Connection cables specially customized for the monitoring systems of industrial and agricultural machinery vehicles
4Pin Waterproof Trailer Cable Key Features
* Durable and Waterproof Design: This cable is designed to withstand harsh weather conditions, ensuring a reliable connection between your trailer and rear view cameras, even in heavy rain or snow.
* Customizable Length: With a spiral cable work length of 2m that can extend up to 4m, this cable provides flexibility for users to adjust the length according to their specific needs.
* Multi-Purpose Connectivity: 4-pin aviation male to female connector, making it suitable for various trailer camera systems.
* High-Quality Materials: The cable is made from double-shielding 4-core wire with an outer diameter of 8.0mm and 5.0mm for the 4-pin aviation cable, ensuring a stable and secure connection.
* Reliable Performance: With a length of 1 meter for each cable to the camera and monitor, this product provides a reliable connection for a smooth and uninterrupted video feed, ideal for users who require a seamless rear view experience.
4Pin Waterproof Trailer Cable Specification
|
Plugs
|
4pin or 6pin
|
|
Cable material
|
Conductor:Oxygen free copper wire (Core wire adopts purity copper as conductor, having fast Speed of transmission and reduced attenuation)
Insulation: environmental-friendly and fire-new PVC Plug: copper |
|
Color
|
Wire:black (optional)plug injected: optional
|
|
Outer Diameter and length
|
Spiral wire OD:8.0MM PU
Cable to camera or monitor OD:5.0MM standard 26AWG shielding Cable length: 1M+4M+1M ( customized) |
|
Shielding
|
DOUBLE shielding
|
|
Function
|
2videos ,1audio ,GND, POWER , Trigger line etc. (cutomized)
|
|
Certification
|
CE,ROHS,UL
|
|
Warranty
|
No Short circuit, No interruption of power supply all cables to be tested 100% before shipping.
|
|
Application
|
For one trailer mounted camera on automobiles like trailer, pickups, vans & SUVs.
It is fit for all vehicle camera system. |

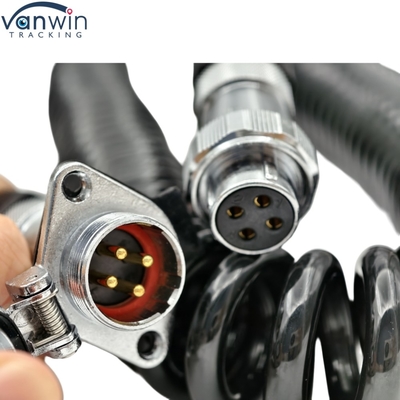

4Pin Waterproof Trailer Cable Product Pictures
Why choose us?
We are a one-stop provider of vehicle-mounted monitoring systems dedicated to addressing vehicle safety, with fifteen years of professional experience. Our products comprehensively cover vehicle recorders, monitors, vehicle cameras, dash cams, and various expansion devices like fuel sensors, temperature sensors, fireproof boxes, alarms, tire pressure sensors and so on. We have provided customized solutions for hundreds of different customers in various application scenarios around the world, earning unanimous praise from our clients. We always uphold a sincere, kind, and enthusiastic service attitude, considering all aspects for our customers and bringing them value far beyond the products themselves.
FAQ
Q1. What is the nature of the company?
A1: We have our own factory and possess the capacity for independent research and development as well as production.
Q2. How to place an order?
A2: Process: Inquiry → Contract confirmation → Payment → Shipment. Supports T/T, Western Union, and Alibaba guarantee transactions.
Q3. Price discount?
A3: Large quantities are negotiable. Long-term cooperation enjoys additional discounts.
Q4. How to ensure quality? A4: Full-process quality inspection, 12-month warranty + lifetime technical support.
Q5. Technical support?
A5: Both pre-sale and after-sale services are provided. We will respond to any issues within 48 hours.
Q6. Delivery time?
A6: 1-3 days for samples and 7-15 days for bulk goods (express service available).
Q7. Logistics services?
A7: We can act as an agent for transportation and support EXW/FOB/CIF terms.
Q8. Packaging standards?
A8: Shockproof carton, customizable LOGO or special protection available.
Q9. Quality inspection process?
A9: 100% pre-factory inspection.
Q10. Long-term cooperation?
A10: Quality first, transparent pricing, and giving priority to meeting customized demands.
Vuoi conoscere maggiori dettagli su questo prodotto
